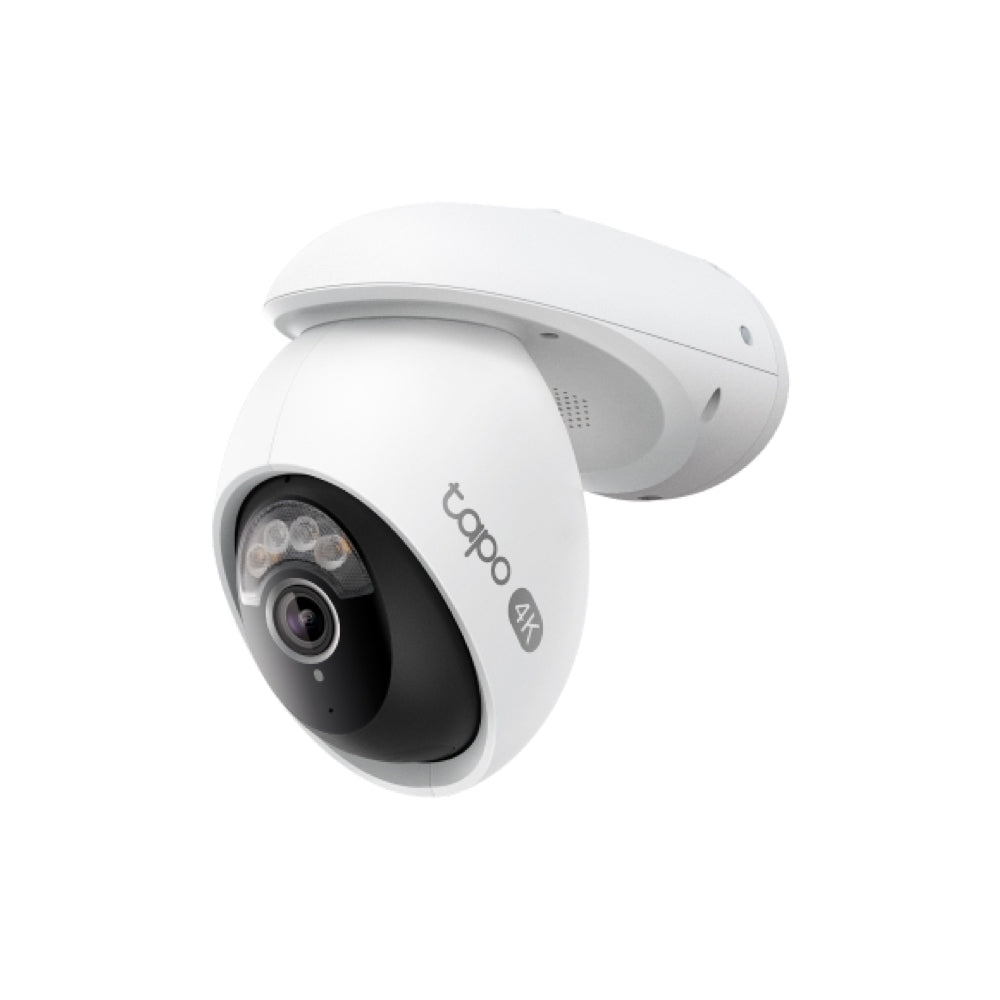

TP-Link TAPO Outdoor Pan/Tilt Security Wi-Fi Camera ( TL-TAPO C560WS )

• 4K Ultimate Clarity: The camera features 4K 8MP resolution for superior clarity with upgraded image sensor, processor and lens.
• Local Facial Recognition: The camera boasts free and powerful Al that recognizes and tags strangers, family, and friends for easy identification.
• Wi-Fi 6 Dual-Band Connection: Connect the camera to a Wi-Fi 6 router and enjoy improved speed, greater stability.
• Starlight Color Night Vision: Capture vibrant images in low light. Enhance security with an F1.6 lens, starlight sensor, and spotlights.
• Free Person/Pet/Vehicle Detection: Using Al technology, the camera provides alerts as it identifies people, pets, and vehicles, reducing false alerts and unnecessary notifications.
• Flexible Storage Options: Choose from local microSD^† storage up to 512GB or the secure Tapo Care^‡ cloud service for additional peace of mind.
• IP66 Weatherproof: Offers excellent waterproof and dustproof performance for outdoor scenarios.

Smart Playback

CAMERA
Image Sensor
1/27” Progressive Scan CMOS Starlight Sensor
Lens
Focal Length: 4 mm ± 5%
Aperture: F1.6 ± 5%
Field of View: 105° (Diagonal), 88°(Horizontal), 45°(Vertical)
Night Vision
850 nm IR LED
Starlight Color Night Vision
Lighting
2× Built-in Spotlights
Interface & Button
1× Ethernet Port
1× RESET Button
1× MicroSD Card Slot (Up to 512GB)
Pan/Tilt Range
Pan Mechanical Range: 326° (360° Pan Coverage)
Tilt Mechanical Range: 53° (98° Tilt Coverage)

VIDEO & AUDIO
Maximum Resolution
4K 8MP (3840 × 2160 px)
Frame Rate
25 fps
Digital Zoom
18x
Video Compression
H.264
Live View
Yes
Image Enhancement
3DNR
WDR
Audio Input & Output
Built-in Microphone and Speaker
Audio Communication
Two-Way Audio with Noise Cancellation
Siren Volume
99 dB (Level measured at 4-inch/10-cm distance)

STORAGE
Local Storage
MicroSD Card Slot on Camera (Up to 512 GB)
General Information about using MicroSD Cards >
Cloud Storage
Tapo Care Cloud Storage Services (Subscription required)

DETECTION and NOTIFICATIONS
AI Detection
Human Face Detection
Motion Detection
Person Detection
Pet Detection
Vehicle Detection
Line-Crossing Detection
Camera Tampering
Activity Zones
Yes
Output Notification
System Notification
System Notification with Snapshot (Tapo Care Services)

NETWORK
Network Connectivity
Connect via Wi-Fi or Ethernet
Wireless Connectivity
IEEE 802.11a/b/g/n/ac/ax, 2.4 GHz /5 GHz
Ethernet Port
Yes
RTSP
Yes
ONVIF
Yes

SECURITY
Security
SSL/TLS,AES

POWER
Power Source
12V DC Power Adapter
Input Voltage
100-240 V, 50/60 Hz
Output Voltage
12 V, 1 A (DC Power)

GENERAL
Smart Integration
Google Assistant, Amazon Alexa
Weather Resistance
IP66
System Requirements
Tapo App: iOS 12.0+ and Android 5.0+ operating systems.
Mounting Options
Ceiling-Mounted
Wall-Mounted
Pole-Mounted (Pole-Mounting loops required but not included)
Operating Temperature
-30℃~60℃ (-22°F~140°F)
Storage Temperature
-40℃~60℃ (-40°F~140°F)
Operating Humidity
10%~90% RH, Non-condensing
Storage Humidity
0~90% RH, Non-condensing
Dimensions ( W x D x H )
147.4 × 74.7 × 165.4mm（Mounting Bracket Included）
147.4 × 74.7 × 157.4mm（Mounting Bracket Excluded)
Certifications
FCC, RCM
