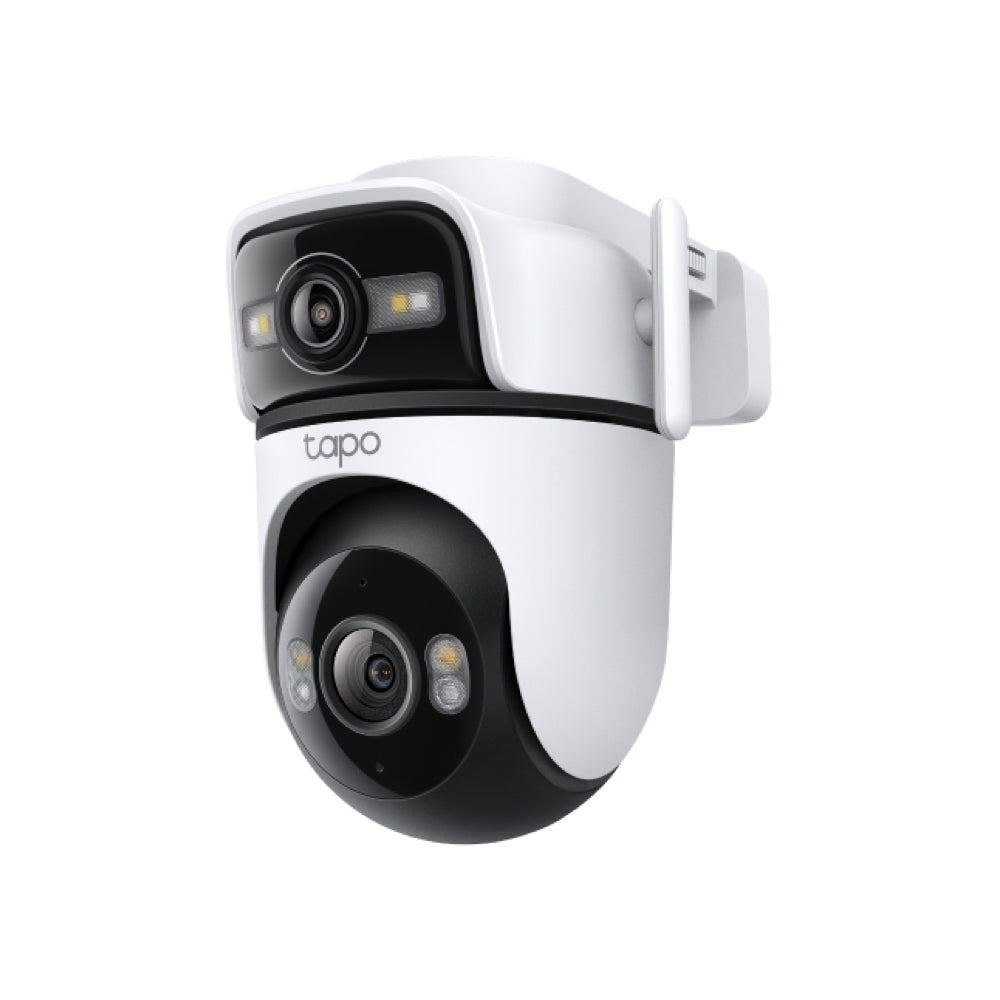

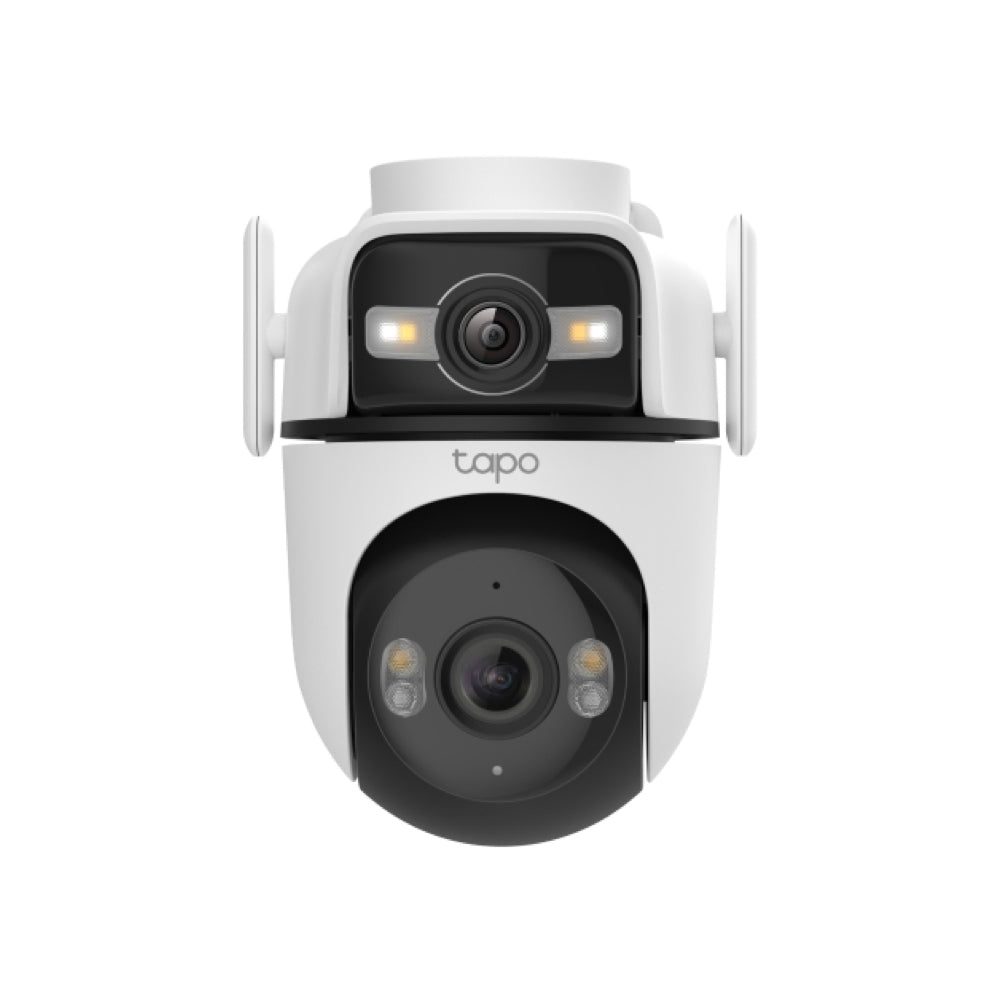

TPLINK TAPO Outdoor Dual Lens Pan/Tilt Security Camera ( TL-TAPO C545D )

• 2K 3MP Dual Lens -  Capture the full picture with dual 2K high definition optics, monitoring two separate areas at the same time with just one device. Engineered to minimize blind spots for optimal coverage.
• Wide-Angle & Telephoto Lens - With 165° FOV wide-angle lens and 6mm telephoto lens, it ensures all-around awareness and down-to-the-detail protection of your home.
• Synchronized Smart Tracking - When the fixed lens detects events, the pan/tilt lens will automatically pivot to focus on and track the moving object.
• One-Tap Smart Focus - Select an area in the wide-angle view, and the pan/tilt camera will focus on it instantly.
• IP66 Weather Resistance - Delivers reliable surveillance through rain, snow, dust, and scorching heat. Monitor your property with confidence, no matter the weather.
• Ethernet Support - Ideal for areas with weak Wi-Fi, an Ethernet connection guarantees smooth live streaming and faster data transmission.
• Free AI Detection & Notification - Get instant push notifications when motion, person, pets and vehicles are detected, there is no additional fee to use it.
• Works with Alexa, Google Assistant & Samsung SmartThings - Fully compatible with Amazon Alexa, Google Assistant and Samsung SmartThings.
• Smart Night Vision -Choose from vibrant full-color with spotlights, discreet black-and-white infrared, or an automatic Smart Mode based on Al light detection for optimal clarity in any nighttime scenario.
• Secure Local or Cloud Storage - Save footage continuously on up to a 512 GB microSD card (not included) or subscribe to Tapo Care for cloud storage which saves 30-day video.
• 2-Way Audio - Engage in seamless, real-time conversations with our two-way audio feature, designed for minimal latency and exceptional sound clarity.


CAMERA
Image Sensor
1/2.8“ Progressive Scan CMOS Sensor

Lens
Focal Length: 6 mm ± 5%, 2.53 mm±5%
Aperture: F1.6 ± 10%, F1.6 ± 10%
Field of View: 66.5° (Diagonal), 57.3° (Horizontal), 31.7° (Vertical);
165.1° (Diagonal), 137.6° (Horizontal), 73.0° (Vertical)

Night Vision
850 nm IR LED (99 ft / 29.9 m), Color Night Vision

Day/Night Switch
IR-Cut Filter with Auto-Switching

Interface & Button
1× RJ45 (10M/100M) Ethernet Port
1× RESET Button
1× microSD Card Slot (Up to 512 GB)

VIDEO & AUDIO
Maximum Resolution
2K 3MP (2304 x 1296 px) + 2K 3MP (2304 x 1296 px)

Frame Rate
15 fps

Video Compression
H.264

Live View
Yes

Image Enhancement
3DNR
WDR

Audio Input & Output
Built-in Microphone and Speaker

Audio Communication
Two-Way Audio with Noise Cancellation

Siren Volume
99 dB (Level measured at 4-inch/10-cm distance)

STORAGE
Local Storage
microSD Card Slot on Camera (Up to 512 GB)

Cloud Storage
Tapo Care Cloud Storage Services (Subscription required)

DETECTION and NOTIFICATIONS
AI Detection
Motion Detection
Person Detection
Pet Detection
Vehicle Detection
Line-Crossing Detection
Camera Tampering

Activity Zones
Yes
*Only works with Motion/Person/Pet/Vehicle Detection.

Output Notification
System Notification
System Notification with Snapshot (Tapo Care Services)

NETWORK
Network Connectivity
Connect via Wi-Fi or Ethernet

Wireless Connectivity
IEEE 802.11 b/g/n/ax, 2.4 GHz

Protocol
TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP

Ethernet Port
Yes

RTSP
Yes

ONVIF
Yes

Transmission Rate
11b: 11 Mbps
11g: 54 Mbps
11n: 72.2 Mbps
11ax: 143.4 Mbps

SECURITY
Security
On-Device Machine Learning
128-bit AES Encryption with SSL/TLS
WPA/WPA2-PSK/WPA3

POWER
Power Source
12 V DC Power Adapter

Input Voltage
100-240 V, 50/60 Hz

Output Voltage
12 V, 1 A (DC Power)

DC Power Connector Size
Inside Ø: 2.1 mm
Outside Ø: 5.5 mm

Power Cord Length
3 m

Typical Power Consumption
5.3 W

Maximum Power Consumption
11.2 W

GENERAL
Smart Integration
Google Assistant, Amazon Alexa, Samsung SmartThings

Weather Resistance
IP66

Mounting Options
Wall-Mounted
Eave-Mounted
Pole-Mounted

Operating Temperature
-30 ºC ~ 60 ºC (-22 °F ~ 140 °F )

Storage Temperature
-40 ºC ~ 60 ºC (-40 °F ~ 140 °F)

Operating Humidity
10% ~ 90% RH, Non-condensing

Storage Humidity
0 ~ 90% RH, Non-condensing

Dimensions ( W x D x H )
4.51 × 6.28 × 5.99 in (114.57 × 159.55 × 152.1 mm)

Weight
17.32 oz / 491 g
