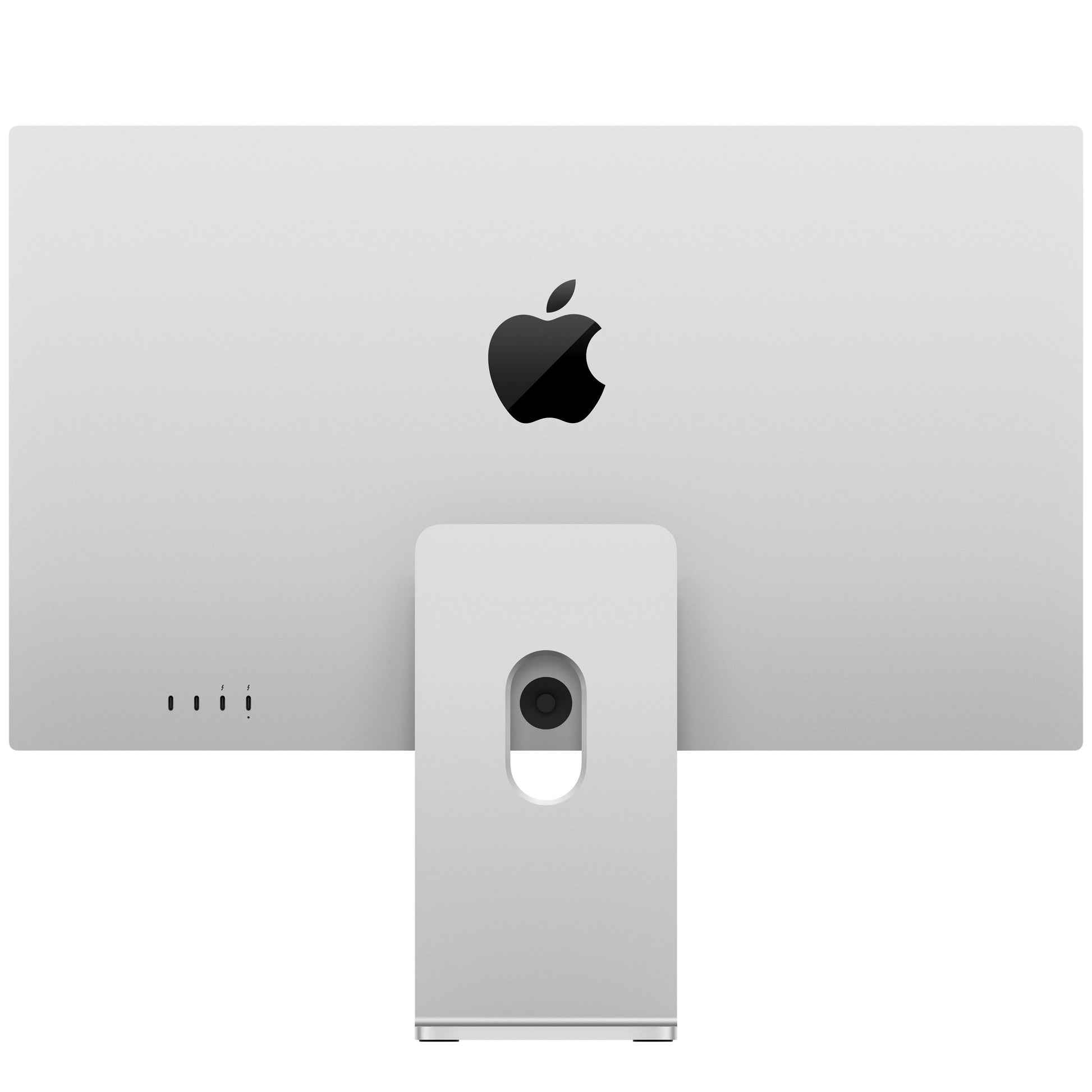

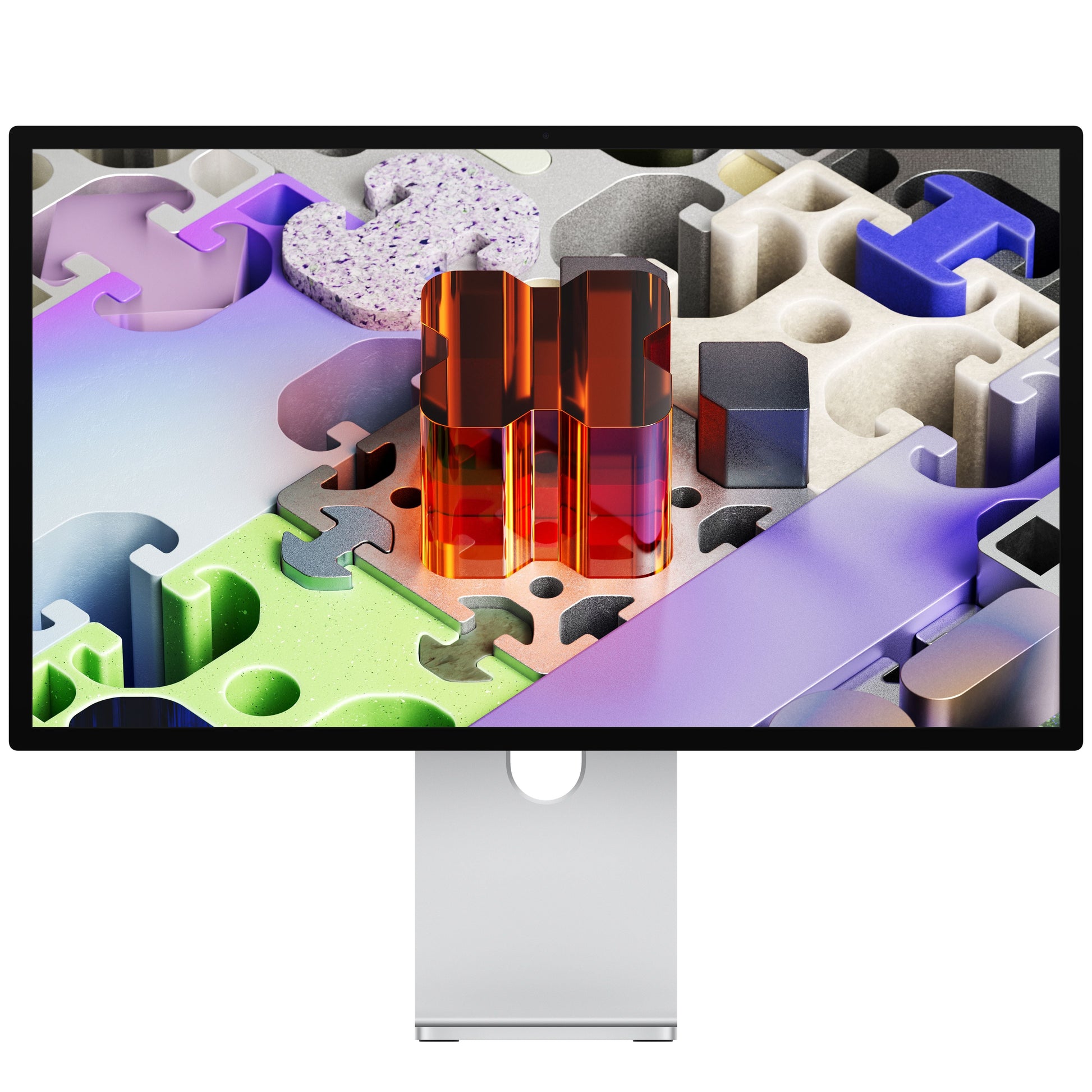

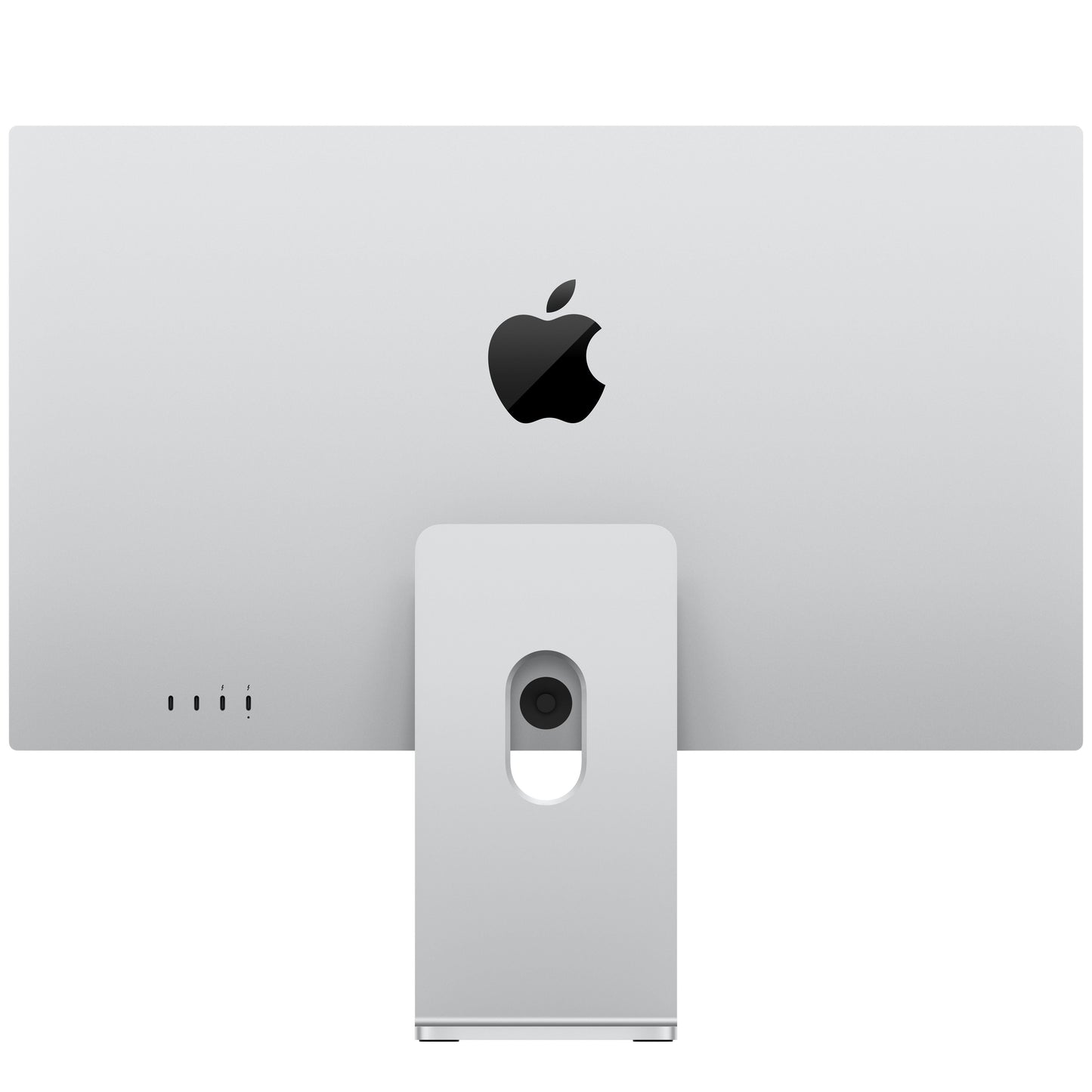

Studio Display XDR

A 27-inch 5K Retina XDR display takes brightness, colour and responsiveness to the next level. Combined with an advanced camera, three-mic array, six-speaker sound and powerful Thunderbolt 5 capabilities, it’s the ultimate display for pros.

Display

5K Retina XDR display
27-inch (diagonal) 5K Retina XDR display
5120x2880 resolution at 218 pixels per inch
Mini-LED backlight with 2,304 dimming zones
Up to 1,000 nits brightness (SDR)
2,000 nits peak1 brightness (HDR)
120Hz refresh rate and Adaptive Sync
Support for 1 billion colours
P3 + Adobe RGB wide colour gamuts
True Tone technology

Reference Modes

Available reference modes:
Studio Display XDR (P3-2,000 nits)
Studio Display XDR (P3 + Adobe RGB-2,000 nits)
HDR Video (P3-ST 2084)
HDTV Video (BT.709-BT.1886)
NTSC Video (BT.601 SMPTE-C)
PAL and SECAM Video (BT.601 EBU)
Digital Cinema (P3-DCI)
Digital Cinema (P3-D65)
Design and Print (P3-D50)
Design and Print (Adobe RGB-D50)
Photography (P3-D65)
Photography (Adobe RGB-D65)
HDR Photography (P3-D65)
Internet and Web (sRGB)

Camera

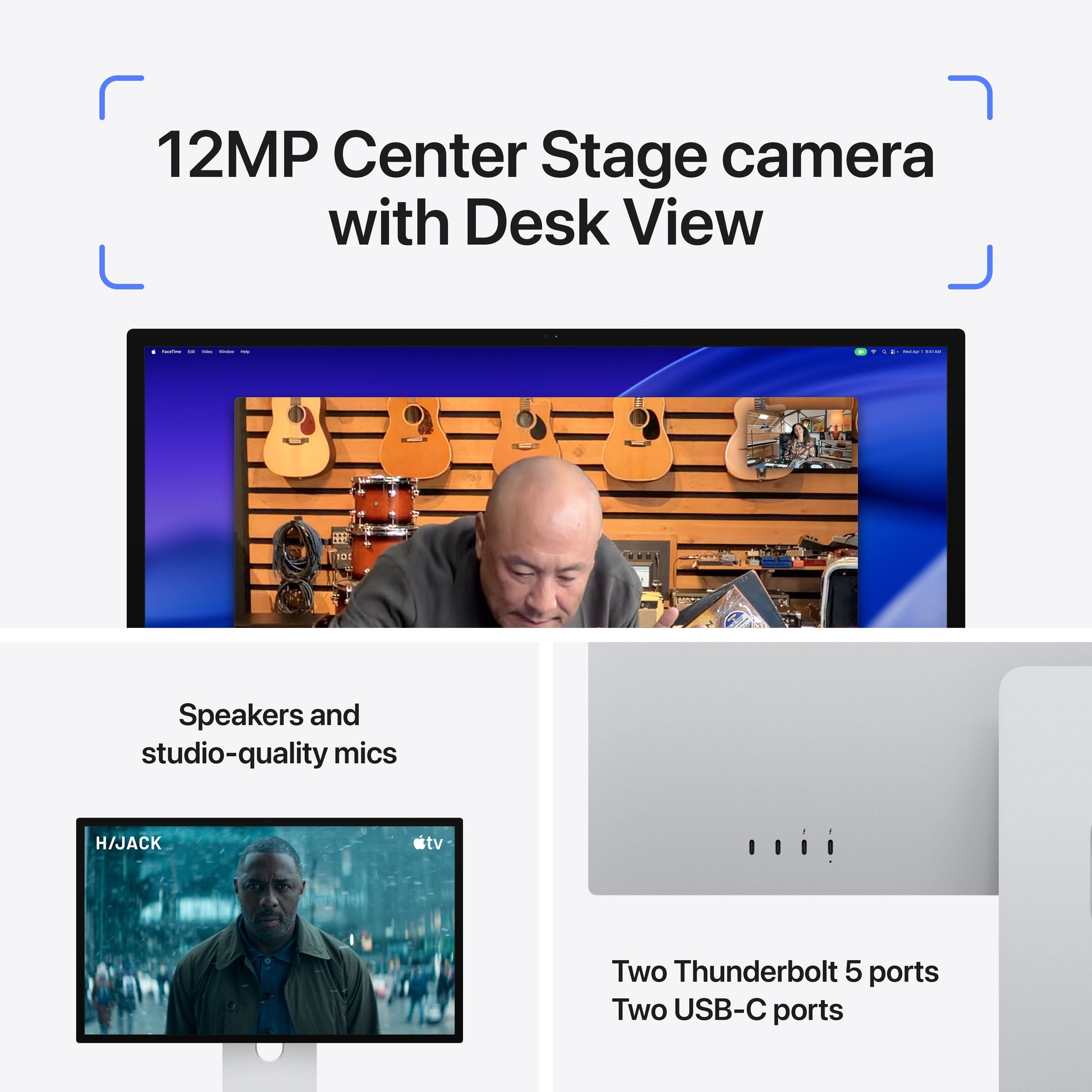

12MP Center Stage camera with Desk View

Connections

Two Thunderbolt 5 ports (up to 120Gb/s) and two USB-C ports (up to 10Gb/s)
One upstream Thunderbolt 5 port () for host (with 140W host charging)
One downstream Thunderbolt 5 port () for connecting
high‑speed accessories or daisy-chaining additional displays
Two USB-C ports (up to 10Gb/s) for connecting peripherals, storage and networking

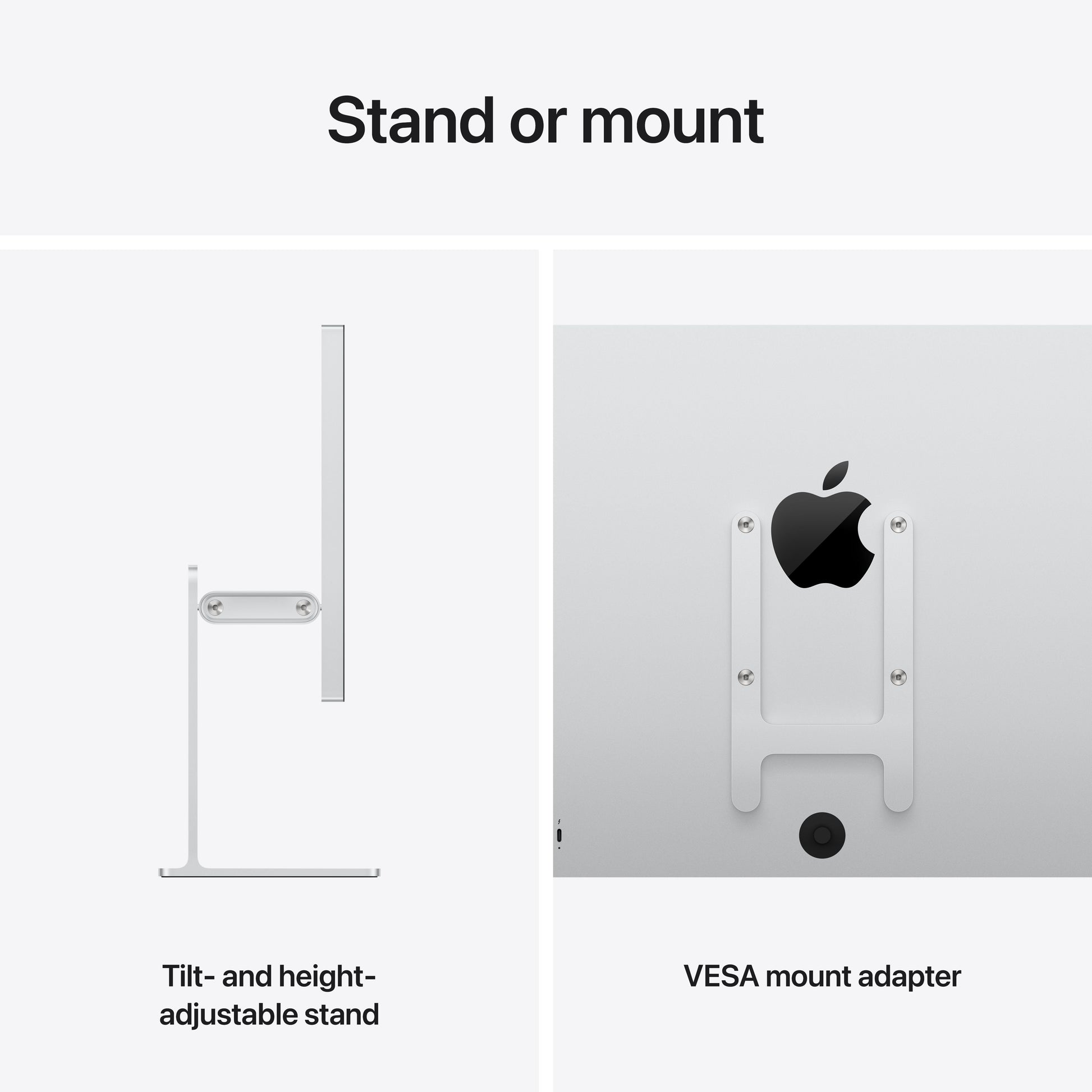

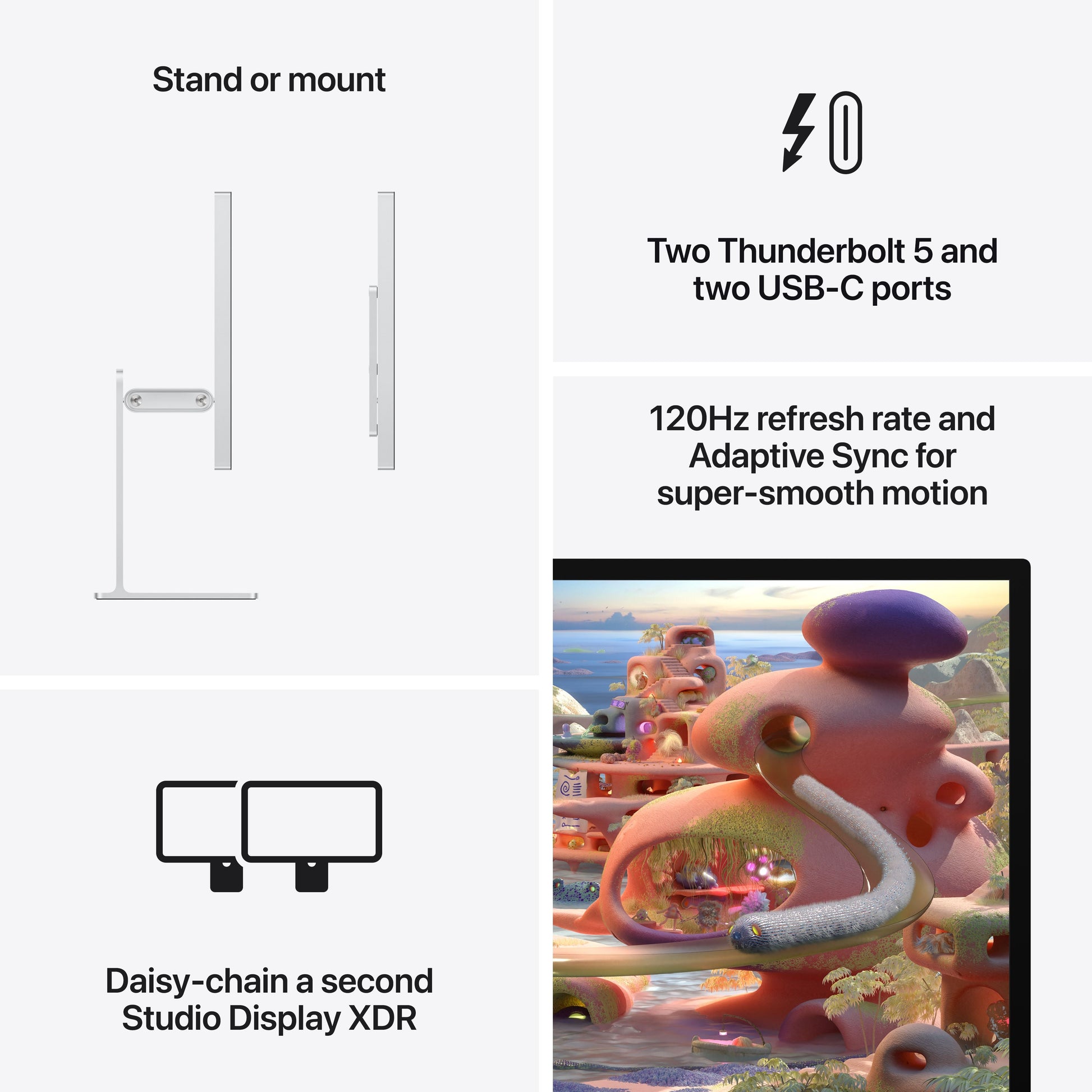

Stand

Tilt- and height-adjustable stand
Tilt: −5° to +25°
Height adjustment: total of 105mm
Orientation: landscape
Configurable with:
VESA mount adapter
Compatible with 100mm x 100mm VESA stand
Orientation: landscape or portrait

Size and Weight

Studio Display XDR with tilt- and height-adjustable stand
Height (bottom position): 47.8cm
Width: 62.3cm
Height (top position): 58.3cm
Weight: 8.5kg2
Depth: 21.4cm

Studio Display XDR with VESA mount adapter
Height: 36.2cm
Width: 62.3cm
Depth: 3.3cm
Weight: 6.3kg2

Compatibility

Studio Display XDR is compatible with the following Mac models with Apple silicon and macOS Tahoe 26.3.1 or later:

16-inch MacBook Pro (2021 and later)
14-inch MacBook Pro (2021 and later)
13-inch MacBook Pro (M1, 2020 and later)
15-inch MacBook Air (2023 and later)
13-inch MacBook Air (M1, 2020 and later)
Mac Studio (2022 and later)
Mac mini (2020 and later)
Mac Pro (2023 and later)
24-inch iMac (2021 and later)
Mac models with M1, M1 Pro, M1 Max, M1 Ultra, M2 and M3 support Studio Display XDR at up to 60Hz. All other Studio Display XDR features are supported.

Studio Display XDR is compatible with the following iPad models with iPadOS 26.3.1 or later:
iPad Pro (M4 and M5)
iPad Pro 12.9-inch (3rd–6th generation)
iPad Pro 11-inch (1st–4th generation)
iPad Air (M2, M3 and M4)
iPad Air (5th generation)
iPad Pro (M5) supports Studio Display XDR at 120Hz. All other compatible iPad models support it at 60Hz.

Electrical and Operating Requirements

Line voltage: 100V to 240V AC
Frequency: 50Hz to 60Hz, single phase
Operating temperature: 10° to 35° C
Relative humidity: 5% to 90% non-condensing
Maximum altitude: tested up to 5,000 metres
